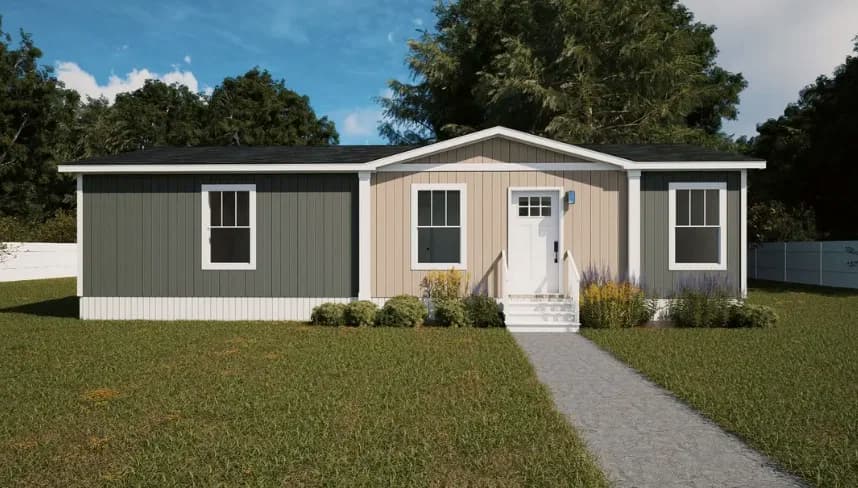

Melody by Clayton Sacramento | Yosemite Homes
Property map Enter your address or APN/TMS to check if this home fits on your property
3 bedrooms
2 full bathrooms
1,158 sq. ft.
26' 4" x 44'
Exterior
8' Sidewall with Flat Ceiling CA Wildland Urban Interface Compliant (WUI) LP Vertical Smart Side Z-Metal at bottom of vertical siding Exterior House Wrap 4" Flat Trim - Windows and Doors 2"x6" Rough Sawn Fascia (DW) 2"x8" Rough Sawn Fascia (SW) Trim/Facia color - Echo Valley 20' Wide Plans- 4/12(Nominal) Roof Pitch/12" Sidewall Eaves 4/12(Nominal) Roof Pitch on Single Wides 2.5/12 Roof Pitch on 24' Wides/32' Wides 2.5/12 Roof Pitch on 28' Wides 8" Nominal Sidewall Eaves Double Wides 3" Nominal Sidewall Eaves Single Wides 12" Front and Rear Overhang Double Wides 12" Front and No Rear Overhang Single Wides 20# - 24" O.C. Trusses Yosemite Homes
Manufactured and modular home dealer in Jamestown, CA, serving Tuolumne County and Gold Country. Site evaluation, permits and project management.
16' Dormer on Double Wides with Side Entry Includes Faux Columns and Accent Paint
Faux Columns and Accent Paint on Single Wides at Entry Door (4" Flat Trim)
Accent Area on Hitch End of Single Wides and Front-End Accent Area of Porch Models Dimensional Shingles - Weather Wood Synthetic Roofing Underlayment
Porches Standard (per plan)
36"x80" Craftsman with 6-lite Window
36" Inswing Fiberglass with 1/2-Light Window (per plan)
Nickel Thumb Latch at Front Exterior Door with Round Interior Doorknob With Deadbolt
Single Hung Windows
80" Window Header Heights
White Vinyl Frame - Dual Pane w/Low-E and Argon Gas
Picture Framed Window Returns with Smooth Trim
Bathroom Windows Per Plan
Optional - 2" Fauxwood Mini Blinds 3-1/2"
Exterior GFI Plug Rear Door
Contemporary Porch Light at Front Door Jelly Jar Porch Light at Rear Door
Hose Bib at Rear
8' Sidewall with Flat Ceiling CA Wildland Urban Interface Compliant (WUI) LP Vertical Smart Side Z-Metal at bottom of vertical siding Exterior House Wrap 4" Flat Trim - Windows and Doors 2"x6" Rough Sawn Fascia (DW) 2"x8" Rough Sawn Fascia (SW) Trim/Facia color - Echo Valley 20' Wide Plans- 4/12(Nominal) Roof Pitch/12" Sidewall Eaves 4/12(Nominal) Roof Pitch on Single Wides 2.5/12 Roof Pitch on 24' Wides/32' Wides 2.5/12 Roof Pitch on 28' Wides 8" Nominal Sidewall Eaves Double Wides 3" Nominal Sidewall Eaves Single Wides 12" Front and Rear Overhang Double Wides 12" Front and No Rear Overhang Single Wides 20# - 24" O.C. Trusses 16' Dormer on Double Wides with Side Entry Includes Faux Columns and Accent Paint
Faux Columns and Accent Paint on Single Wides at Entry Door (4" Flat Trim) Accent Area on Hitch End of Single Wides and Front-End Accent Area of Porch Models Dimensional Shingles - Weather Wood Synthetic Roofing Underlayment Porches Standard (per plan) 36"x80" Craftsman with 6-lite Window 36" Inswing Fiberglass with 1/2-Light Window (per plan) Nickel Thumb Latch at Front Exterior Door with Round Interior Doorknob With Deadbolt Single Hung Windows 80" Window Header Heights White Vinyl Frame - Dual Pane w/Low-E and Argon Gas Picture Framed Window Returns with Smooth Trim Bathroom Windows Per Plan Optional - 2" Fauxwood Mini Blinds 3-1/2" Exterior GFI Plug Rear Door Contemporary Porch Light at Front Door Jelly Jar Porch Light at Rear Door Hose Bib at Rear Interior
Hardwood Cabinets with Picture Frame Doors Rock Maple Interior Cabinet Finish - No Back Panel on Base Cabinets Hidden Hinges Ball Bearing Drawer Guides Black Knobs on Cabinet Doors & Drawers K770BL Cape Cod Canyon Cove 25oz. Plush Stain Resistant Carpet in Multi-Section Homes (per plan) 3/8" 5lb. Carpet Pad (per plan) Aged European Oak (DF9656) Vinyl Flooring - Location Per Plan Baseboards - 5" Smooth 2-Panel Interior Passage & Wardrobe Doors MDF Door Jambs Door Casing - 2-1/4" Smooth Round Doorknobs - Brushed Nickel Wire Closet Shelves Tape and Textured Ceiling & Walls (1/2") Swiss Coffee Interior Wall & Ceiling Paint Mini Bullnose Corners (Most Areas) Silent Air Return Entry Lino Rocker Light Switches Recessed LED Lights Throughout
Hardwood Cabinets with Picture Frame Doors Rock Maple Interior Cabinet Finish - No Back Panel on Base Cabinets Hidden Hinges Ball Bearing Drawer Guides Black Knobs on Cabinet Doors & Drawers K770BL Cape Cod Canyon Cove 25oz. Plush Stain Resistant Carpet in Multi-Section Homes (per plan) 3/8" 5lb. Carpet Pad (per plan) Aged European Oak (DF9656) Vinyl Flooring - Location Per Plan Baseboards - 5" Smooth 2-Panel Interior Passage & Wardrobe Doors
MDF Door Jambs Door Casing - 2-1/4" Smooth Round Doorknobs - Brushed Nickel Wire Closet Shelves Tape and Textured Ceiling & Walls (1/2") Swiss Coffee Interior Wall & Ceiling Paint Mini Bullnose Corners (Most Areas) Silent Air Return Entry Lino Rocker Light Switches Recessed LED Lights Throughout Kitchen
Tall Overhead Cabinets in Kitchen Deep Cabinet Above Refrigerator 2" Stile Molding on Overhead Cabinets Bank of Drawers in the Kitchen Drawers over Doors Laminate Countertop with 1-1/2" Square Self edge Laminate Backsplash Sink-SS 50/50 Top Mount 8" Deep Stellen Nickel Pullout Faucet 30" Electric Range Stainless Steel - Self-Clean 36" Canopy Range Hood - Stainless Steel Energy Star Dishwasher - Stainless Steel Energy Star Refrigerator w/Icemaker 18 cu. ft. - Stainless Steel Plumb for Ice Maker w/recessed supply line box Water Shut-off Valves at Sink Black Pendant Lights Over Island
Tall Overhead Cabinets in Kitchen Deep Cabinet Above Refrigerator 2" Stile Molding on Overhead Cabinets Bank of Drawers in the Kitchen Drawers over Doors Laminate Countertop with 1-1/2" Square Self edge Laminate Backsplash Sink-SS 50/50 Top Mount 8" Deep
Stellen Nickel Pullout Faucet 30" Electric Range Stainless Steel - Self-Clean 36" Canopy Range Hood - Stainless Steel Energy Star Dishwasher - Stainless Steel Energy Star Refrigerator w/Icemaker 18 cu. ft. - Stainless Steel Plumb for Ice Maker w/recessed supply line box Water Shut-off Valves at Sink Black Pendant Lights Over Island Bathroom
36" High Sink Cabinet Toe-Kick Bath Vanity(s) Laminate Countertop with 1-1/2" Square Self edge Laminate Backsplash on Back Wall Only Rectangular Top Mount China Sinks Pfirst Nickel Dual Handle Lavy Faucet(s) Fiberglass Shower 60" W/Clear Shower Door Installed - Primary Bath Fiberglass Tub/Shower 60" - Guest Bath OR If Home Only Has One Bathroom Weller Brushed Nickel Shower & Tub/Shower Faucet(s) Picture Framed 42" Tall Mirror - Cabinet Match Elongated Toilet Ceiling Exhaust Fan Water Shut-off Valves at Sink(s) & Toilet(s) Towel Bars or Tissue Holders - Optional
36" High Sink Cabinet Toe-Kick Bath Vanity(s) Laminate Countertop with 1-1/2" Square Self edge Laminate Backsplash on Back Wall Only Rectangular Top Mount China Sinks Pfirst Nickel Dual Handle Lavy Faucet(s) Fiberglass Shower 60" W/Clear Shower Door Installed - Primary Bath Fiberglass Tub/Shower 60" - Guest Bath OR If Home Only Has One Bathroom Weller Brushed Nickel Shower & Tub/Shower Faucet(s)
Picture Framed 42" Tall Mirror - Cabinet Match Elongated Toilet Ceiling Exhaust Fan Water Shut-off Valves at Sink(s) & Toilet(s) Towel Bars or Tissue Holders - Optional Bedroom
Recessed LED Lights 2ea in Primary Bedroom, Secondary Beds & Flex room Wire and Brace for Ceiling Fan in Primary Bedroom
Recessed LED Lights 2ea in Primary Bedroom, Secondary Beds & Flex room
Wire and Brace for Ceiling Fan in Primary Bedroom Construction
2" x 4" Exterior Walls 16" O.C. 1-1/2" LVL Engineered Ceiling Ridge Beam on Large Span Areas OSB Roof Sheathing Ice Dam on Edge of Roof Floor Widths 12'-142", 14'-158", 16'-180" Floors 2"x6" 16" O. C. Floors 2"x8" 16" O.C. 180" Floor Width 5/8" OSB Floor Decking Foundation Ready Chassis with Protruding 1- Beams All Brake Axels on 16'-180" Floor Widths Insulation: R-22 Floor, R-15 Wall, R-38 Ceiling eBuilt (Energy Star Certified) 2"x3" Interior Walls
2" x 4" Exterior Walls 16" O.C. 1-1/2" LVL Engineered Ceiling Ridge Beam on Large Span Areas OSB Roof Sheathing Ice Dam on Edge of Roof Floor Widths 12'-142", 14'-158", 16'-180" Floors 2"x6" 16" O. C.
Floors 2"x8" 16" O.C. 180" Floor Width 5/8" OSB Floor Decking Foundation Ready Chassis with Protruding 1- Beams All Brake Axels on 16'-180" Floor Widths Insulation: R-22 Floor, R-15 Wall, R-38 Ceiling eBuilt (Energy Star Certified) 2"x3" Interior Walls Mechanical
High Efficiency Carrier Electric Furnace 50 Gallon Electric Water Heater Plumb/Wire Washer (per plan) Wire for Electric Dryer Metal Shut Off Valves at Washer Dryer Vent in Wall Overhead Wire Shelf at Washer/Dryer Area Furnace Air Return Opening in Wall (per plan) White Louvered Door at Utility (per plan) Louvered Doors on Interior Furnace and Water Heater Access Floor Mounted Heat Registers in Wet Areas 200 Amp Panel Box Honeywell Programmable Thermostat Smoke Detectors Hard Wired w/Battery Backup Optional Gas Homes - Carbon Monoxide Detector Hard Wired w/Battery Backup
High Efficiency Carrier Electric Furnace 50 Gallon Electric Water Heater Plumb/Wire Washer (per plan) Wire for Electric Dryer Metal Shut Off Valves at Washer Dryer Vent in Wall Overhead Wire Shelf at Washer/Dryer Area Furnace Air Return Opening in Wall (per plan)
White Louvered Door at Utility (per plan) Louvered Doors on Interior Furnace and Water Heater Access Floor Mounted Heat Registers in Wet Areas 200 Amp Panel Box Honeywell Programmable Thermostat Smoke Detectors Hard Wired w/Battery Backup Optional Gas Homes - Carbon Monoxide Detector Hard Wired w/Battery Backup Other
Recessed LED Lights 4ea in Living Room Wire and Brace for Ceiling Fan in Living Room Clayton Specifications subject to change without notice or obligation 3-17-26 sacramento
Recessed LED Lights 4ea in Living Room Wire and Brace for Ceiling Fan in Living Room Clayton
Specifications subject to change without notice or obligation 3-17-26 sacramento Get started with Yosemite Homes
